Zone Samplers

All-layer sampler

All-layer sampler, with open inner tube, no separate chambers, and large sampling volume. For all-layer samples through all the layers of the sample.

  • Aluminium or AISI 316L (1.4404)\
  • 25 mm Ø

Corresponds to ISTA standard for seed lengths of 10 mm (wheat, oats) and 5 mm (flax, vetches).

tabel all layer sampler-01.png

Multi sampler

Multi sampler with several closed chambers, for multi-point sampling from several predetermined sampling depths.

  • Aluminium, AISI 316L (1.4404) or AISI 316L/PTFE
  • Version made of AISI 316L (1.4404)/PTFE with low weight due
  • to PTFE sample chambers.
  • With colour coding system
  • 25 mm Ø
tabel multi sampler-01.png

Uno sampler

Uno sampler made of stainless steel AISI 316L (1.4404)/PTFE with a closed sample chamber for point sampling from a predetermined sampling depth.

  • Outer tube stainless steel AISI 316L (1.4404), sample chambers
  • made of PTFE
  • With colour coding system
  • 25 mm Ø

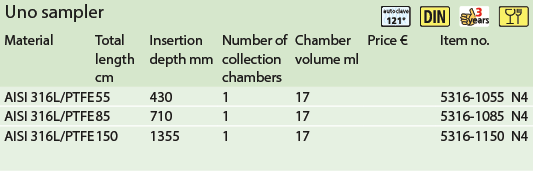

tabel uno sampler-01.png
different close-it-01.png

Different colors of close-it.

Use
1. Turn the handle, close the chambers.
2. Insert the sampler to the required depth.
3. Open the chambers, the sample flows into the chamber.
4. Close the chambers.
5. Pull out the sampler.
6. Close the insertion opening with the close-it control seal.
7. Empty the chambers onto Quali-Paper or with the emptying device.​e samplers
